MEDICAL SERVICES
Precise. Meticulous. Flawless. AGL maintains strict quality control in our medical manufacturing process.
We manufacture medical instruments, hardware, and devices in the fields of:
- Orthopedics
- Cardiac
- Vascular
High-speed precision for micro-machining small parts.

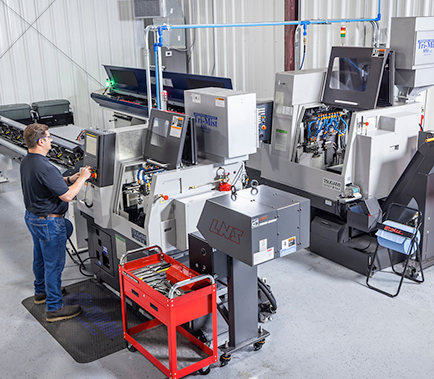

Our medical manufacturing department is housed in a separate, sanitary building on the AGL campus. Our state-of-the-art medical manufacturing machinery includes:
• Tsugami B-075 (5-Axis, Swiss Lathe), Max Diameter: 7MM
This 5-axis machine has back spindle capabilities along the Z2-axis and is able to eliminate many secondary operations. This convertible Swiss style lathe features a very high speed main spindle (15,000rpm) and sub spindle (12,000rpm). High speed is essential for precision in micro-machining small parts.
• Tsugami 55327-5AX (7 AXIS, Swiss Lathe with Milling), Max Diameter: 32MM
The Tsugami SS327-III-5AX Swiss Type Lathe is an enhanced, high performance automatic lathe. This machine’s servo-driven, modular B-axis allows for the cutting of complex parts, complete in a single setup, while applying the capability for through hole thread whirling or high speed spindles for small surfacing end mills. The B-axis contains live tools (four front, two rear) which can machine in coordination with the C-axis, delivering the ability to cut precise angles and sculpted contours. The B-axis functionality transforms this Swiss type lathe into a multitasking turning center that can drill, tap, and end mill any angle.
Automated technology for high-definition, accurate inspections.

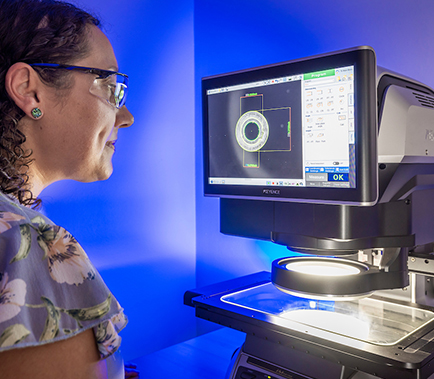

AGL’s KEYENCE IM-8030T Image Dimension Measurement System has triple the detection performance of conventional systems. The IM-8030T has a 20-megapixel CMOS sensor and a new algorithm for stable edge detection, high-accuracy measurement on up to 300 features within seconds.
The inspection station is only steps away from our milling lathes, allowing our technicians to monitor quality during the manufacturing process.
AGL Machine Works is WCS ISO 9001 Certified, which allow us to offer our services to the medical device sector.
Ready To Start Your Next Project
Contact us today to find out how AGL Machine Works expertise can help you!
